-11- TOP SECRET-T

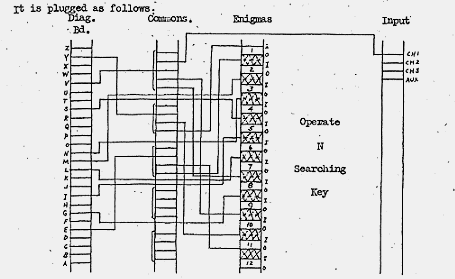

It is plugged as follows:




Fig. 15. Plugging for Menu in Fig.14.



Various arrangements of wheel orders are specified to be run on the bombe.
It may be specified that all 60 wheel orders be run. (abbr. 60. w/os) Sometimes
it is specified that we run the left (right) hard side of the w/o sheet only
(abbr. L.H.S. or R,H.S,) It may be required that we use only the nigel Y w/os

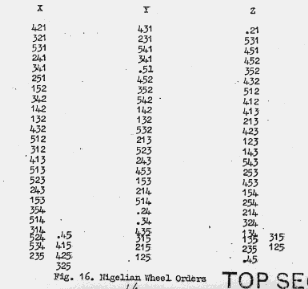

on the left had side of the w/o sheet. The Nigelian wheel orders are listed
below. They are referred to as Nigel X,Y,or Z.




,


---
